Visualizing Upcoming Appointment Status Forecast#

Shows the daily distribution of appointment statuses (typically scheduled and cancelled) for the upcoming N days after the scheduler’s reference date. This forward-looking plot provides a snapshot of short-term workload and potential cancellations within the booking horizon.

Function Overview#

Function: medscheduler.utils.plotting.plot_status_distribution_next_days(df, *, scheduler, days_ahead=30, date_col='appointment_date', status_col='status')

Inputs:

  • df (pd.DataFrame) — Appointment-level table with at least date_col and status_col columns.

  • scheduler (AppointmentScheduler) — Must expose a ref_date attribute defining the forecast start.

  • days_ahead (int) — Number of days ahead of ref_date to include in the chart. Default: 30.

  • date_col (str) — Column containing appointment dates. Default: "appointment_date".

  • status_col (str) — Column containing appointment statuses. Default: "status".

Returns: matplotlib.axes.Axes — Stacked bar chart showing future appointment counts by status per day.

Validation & error handling:

  • Missing required columns → raises ValueError("DataFrame must contain columns: …").

  • Scheduler without ref_date → raises ValueError("Scheduler must have a ref_date attribute.").

  • Empty filtered range → _empty_plot("No data available in the next N days …").

  • Column order is explicitly set to ["scheduled", "cancelled"] to maintain consistency.

Output Description#

  • X-axis: Sequential calendar days from ref_date up to ref_date + days_ahead.

  • Y-axis: Number of appointments per day.

  • Bars: Stacked representation of future appointments by status.

    • Lower bar = scheduled appointments (default color #CD77B6).

    • Upper bar = cancelled appointments (default color #B3C1F2).

  • Labels: Total daily appointment counts displayed above each stacked bar.

  • Grid & style: Subtle dashed Y-grid, no top/right spines, compact legend above chart.

  • Error policy: Strict validation — missing inputs raise exceptions (unlike the lenient last-days counterpart).

This visualization supports operational planning by highlighting expected workload and upcoming cancellations.

Example#

from medscheduler import AppointmentScheduler
from medscheduler.utils.plotting import plot_status_distribution_next_days

# Generate synthetic appointment dataset
sched = AppointmentScheduler()
slots_df, appts_df, patients_df = sched.generate()

# Visualize appointment outcomes for the next 30 days
ax = plot_status_distribution_next_days(appts_df, scheduler=sched, days_ahead=30)
ax.figure.show()  # optional in interactive sessions

Output preview:

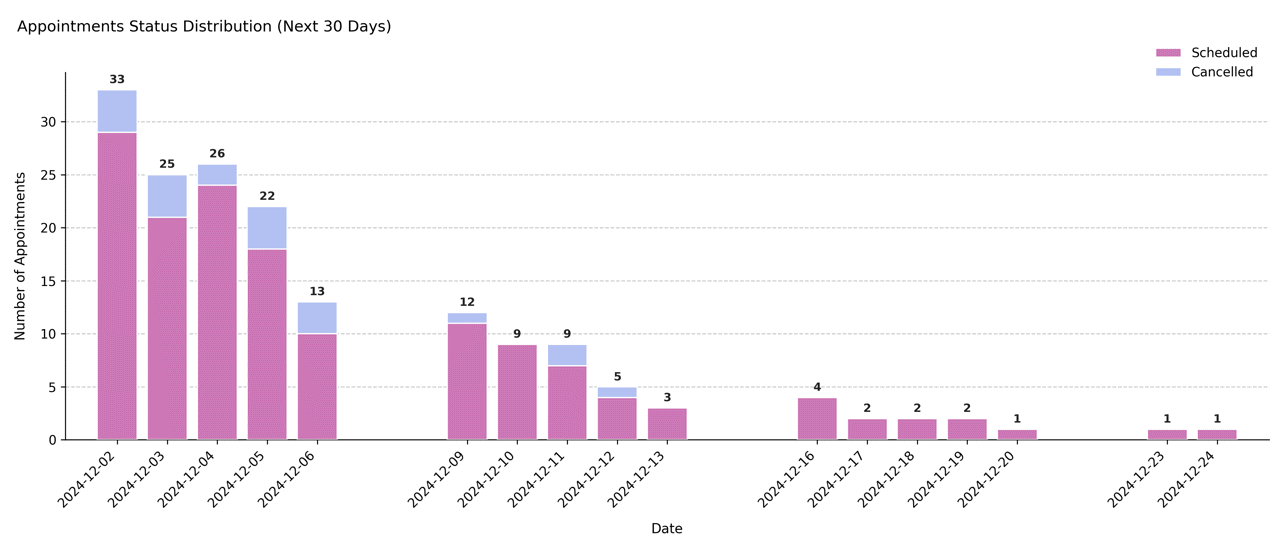

The stacked bar chart below displays the distribution of appointment statuses for the 30 days following the reference date. It highlights how future appointments are categorized (e.g., scheduled vs. cancelled) across each upcoming day.

Status Distribution Next Days#
